63 Litre Top Loading Compact Autoclave Range

Model: AMA240 Autofill (63 litres)
Model: AMA440 Classic (63 litres)

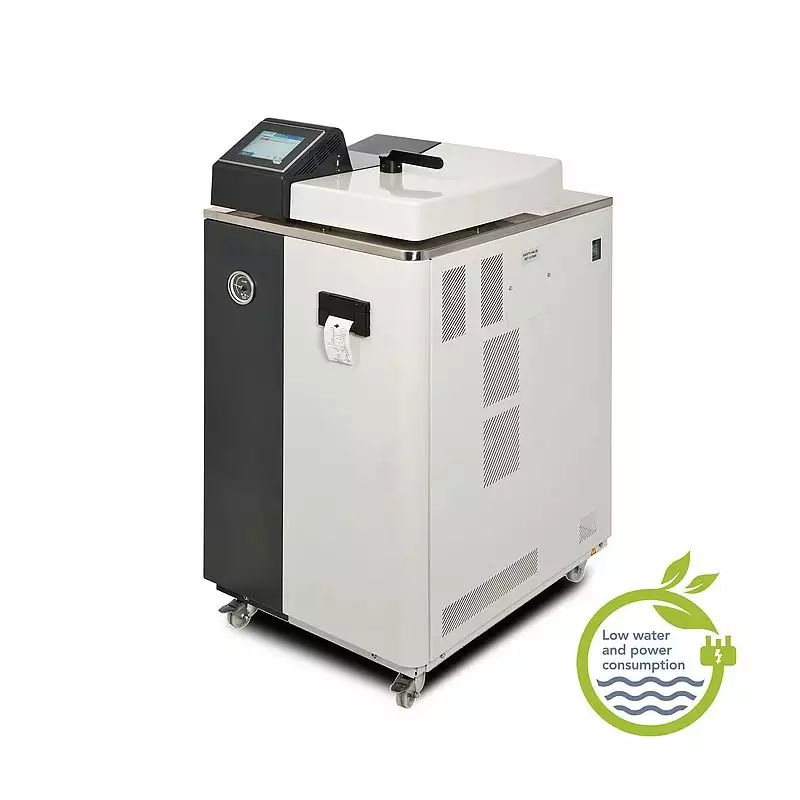

63 Litre Top Loading Compact Autoclave Range

The 63 litre 'Compact' top loading autoclaves are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single phase power supply. All compact autoclaves are fitted with castors for easy movement.

Available in two versions; they are idea for a medical application, for sterilizing tall items, or in any situation where space is at a premium. ‘Classic’ and ‘Ecofill’ models are available.

Contact us now on +44 (0)20 8309 2031 to find out more, or request a quotation by clicking here. For organisations outside the UK, please contact your national dealer who can be found on our Find a Dealer page.

Ecofill 'Compact' top loading autoclave:

The ‘Ecofill’ version has an integral reservoir and an in-built 'autofill' water re-circulation system. Once the reservoir is filled, this provides water for up to 15 cycles, and also acts as a collection vessel for condensate and the water that is automatically returned from the chamber at the end of each cycle, minimising water usage.

Classic 'Compact' top loading autoclave:

The ‘Classic’ version requires manual water-fill and during the cycle condensate leaves the vessel via a silicone tube that can be connected to a heat-resistant bottle.

View Products in Stock


  • 316 stainless steel electropolished chamber
  • Base shelf within the chamber
  • Calibration and Validation available
  • Castor mounted for easily moving the unit
  • FDA 21 CFR part 11 software option available
  • Cooling Lock
  • Fast action door closure mechanism
  • Five password levels to stop lower level users making changes
  • Five pre-programmed cycles and up to 50 available
  • Holdwarm / Delayed Start feature
  • No mains water supply or drain necessary
  • Optimised for low water and power consumption
  • Over Temperature Protection
  • Pressure Gauge
  • Self contained design with no installation required - just fill it with water and plug it in and the machine is ready to be used
  • Standard Astell safety features
  • Temperature range of 100°C to 138°C (0.2 - 2.4 Bar)
  • Timed/Pulsed Free Steaming

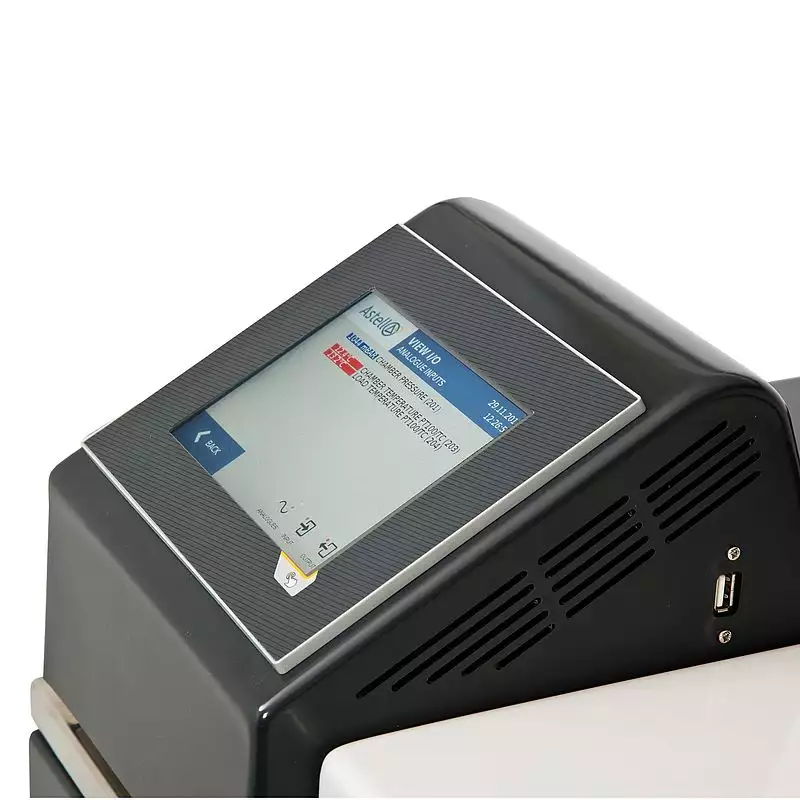

  • Fully programmable 5.7" Colour Touch Screen controller
  • USB interface for downloading controller data
  • Validation Port

Product Options

  • 21 CFR 11 controller software 21 CFR 11 controller software
  • Assisted Air Cooling (only available for non-vacuum models) Assisted Air Cooling (only available for non-vacuum models)
  • CAT III (BSL3) compliance (>63L) CAT III (BSL3) compliance (>63L)
  • Condensate Bottle (for 'Classic' models only) Condensate Bottle (for 'Classic' models only)
  • Ethernet interface Ethernet interface
  • Morrison Discard Container (310 x 270mm) Half Depth Morrison Discard Container
  • Stainless Steel basket (310x270mm) Half Depth Stainless Steel Basket

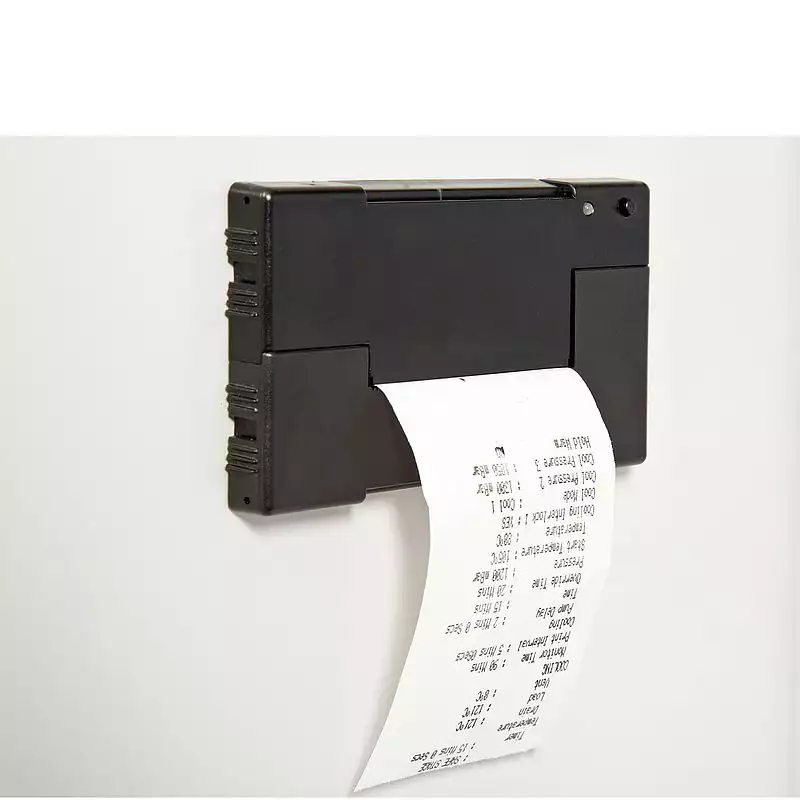

  • Integral Data Printer Integral Data Printer
  • IQ/OQ documentation IQ/OQ documentation
  • Load Sensed Process Timing Load Sensed Process Timing
  • Load Support Plate Load Support Plate
  • Nelldorn Glassware Dryer Nelldorn Glassware Dryer
  • Pulsar Freesteaming (only available on non-vacuum models) Pulsar Freesteaming ( Not compatible with Simple Vacuum )
  • Remote maintenance/diagnosis Remote maintenance/diagnosis

Related Case Study

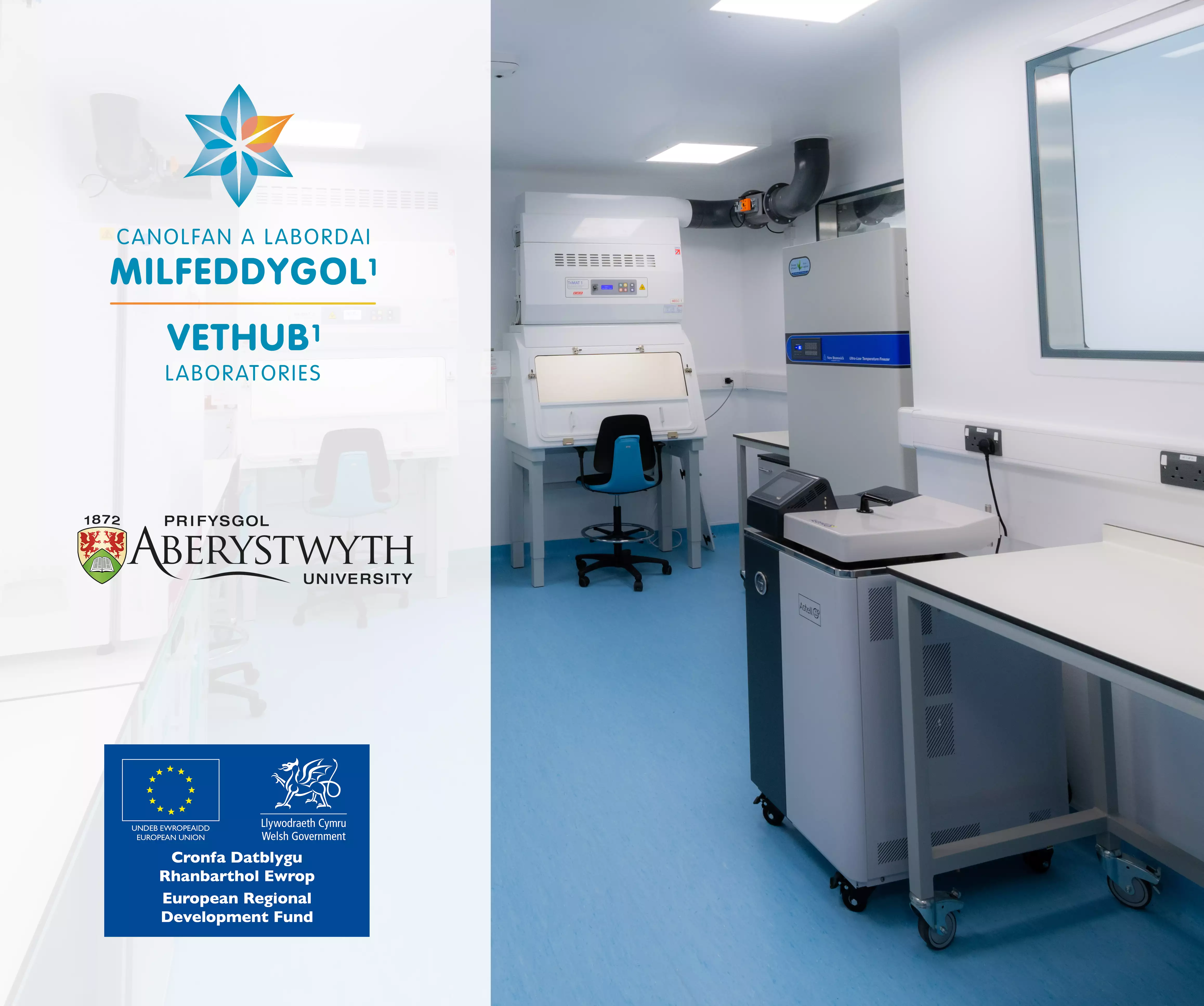

Vethub1: Case Study

Supplying Portable, ‘Plug & Play’ Autoclaves to £4.2m EU-backed Secure Facility for Animal & Human Pathogen Research

“As a biological safety professional my expertise is in the development of methods, the delivery and design of training, and implementation of safe methods of working with dangerous and novel materials [.] Astell’s ‘plug and play’ approach makes this much easier, and the units are on wheels so can be moved around if the need arises.”


Vets Now: Case Study

Compact autoclave with vacuum facilities rapidly cools the chamber leaving surgical instruments touch dry for Vets Now.
